2019 Big Tex Tandem Axle Diamond Back Car Hauler

Call for Quote

(972) 522-9214

Pauls Valley, OK

Our top-of-the-line, premier car hauler, the 70DM Diamond Back Car Hauler delivers the hauling capabilities you demand with the eye-catching looks youve always wanted. Aluminum wheels, steel floor, and diamond-plate rear slide-out ramps make the 70DM both easy to use and easy to look at. Plus, its box tubing frame gives the trailer added strength and durability. With both looks and hauling prowess, the 70DM is the best of both worlds.

  • Overview
  • Features/Specifications
  • Standard/Optional Equipment
  • Financing

Overview

2019 Big Tex Tandem Axle Diamond Back Car Hauler

2019 Big Tex Tandem Axle Diamond Back Car Hauler

70DM-20

Features:

  • G.V.W.R. 7,000#
  • G.A.W.R. (Ea. Axle) 3,500#
  • 7K 2" Forged Coupler
  • 1/4" Grd. 70 Safety Chains w/Safety Latch Hook (2 each)
  • 2K Fold-up Jack
  • 4" X 2" x .188" Rectangular Tubing tongue
  • 4" X 2" x .188" Rectangular Tubing Frame
  • 3" x 2" x 3/16" Angle Crossmembers
  • 9" x 72" Tear Drop w/Back (Bolted On) Fenders
  • Two 3,500# EZ Lube Axles w/1 Elec. Brake
  • Multi-Leaf Spring suspension
  • ST205/75-15 Load Range C Tires
  • 15 x 6 Chrome Modular 5 Bolt Wheel
  • 1/8" Diamond Plate Floor
  • D.O.T. Stop, Tail, Turn & Clearance Lights
  • 7-Way RV Elec. Plug
  • Steel is Cleaned to Ensure a Professional Smooth Finish
  • Superior Quality Finish is Applied for a Highly Decorative and Protective Finish

Standard Features:

  • Safety Chains Attached w/Cold Rolled Eyelets
  • Fold-up Jack
  • Fold back Tongue
  • Chamfered Front w/stop Rail
  • 1/8" Diamind Plate Floor w/ Four Recessed D-Rings
  • Cambered EZ Lube Axles
  • Two 3,500# Axles w/1 Electric Brake
  • Complete Break-A-Way System
  • Chrome Wheels w/chrome Caps & Lugnuts
  • Spare Tire Mount
  • Dovetail
  • 5' Long X 20" Wide Diamond Plate Ramps Slide in from rear
  • Grommet Mount Sealed Lighting

Axle Config:
Tandem
Max Payload:
4680 lbs.
External Width:
83"
External Length:
20'
Hitch Type:
Bumper Pull
Category:
Car/Auto Haulers
Year:
2019
Condition:
New
Material:
Steel
Open/Enclosed:
Open
Rear Type:
Dove Tail
Color:
Black
GVWR:
7000
Capacity:
4680

Features/Specifications

Features

Axle (2) 3,500# Quick Lubricaing w/ (1) Elec. Brake
Jack 2,000# Front Wind, Set-Back Jack (Bolted On)
Tire ST205/75R-15 Load Range C
Floor 1/8" Diamond Plate
Frame 4" x 2" x .188" Rectangular Tubing
Wheel 15", 5-5 Bolt Pattern w/Alum Wheels
Finish Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
Lights L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Tongue 4" x 2" x .188" Rectangular Tubing
Coupler Adjustable 7,000#, 2" Forged Coupler
Fenders 9" x 72" Tear Drop w/ Back (Bolted On)
G.V.W.R. 7,000#
Uprights None
Elec. Plug 7-Way RV
Hitch Type Bumper Pull
Suspension Multi-Leaf Spring w/ Equalizer
Crossmembers 3" x 2" x 3/16" Angle
Finish (Prep) Steel is Cleaned to Ensure a Professional, Smooth Finish
Safety Chains 1/4" Grd. 70 w/ Safety Latch Hook (2 each)
Front Stop Rail 3/16" Fabricated Front Stop Rail
G.A.W.R. (Ea. Axle) 3,500#

Specifications

Diamond Back Car Hauler

Big Tex 70DM Diamond Back Car Hauler

Model Description
70DM-18 83" x 18' Tandem Axle Premium Car Hauler
70DM-20 83" x 20' Tandem Axle Premium Car Hauler

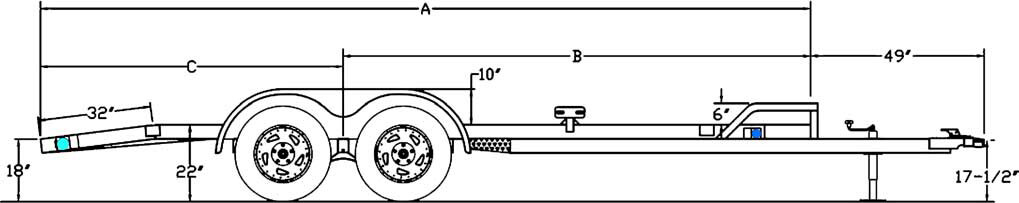

Dimensions

Length A B C
18' 217-1/2" 132" 85-1/2"
20' 240" 150" 90"

Trailer Weights & Capacities

Length Empty Weight Payload Box Capacity
18' 2,140# 4,860# N/A
20' 2,320# 4,680# N/A

Standard/Optional Equipment

Standard Equipment

  • Stake Pockets Along Sides
  • Adjustable, Forged, 7,000# Coupler
  • Fold Back/Wrap Tongue
  • 2,000# Front Wind, Set-Back Jack
  • Quick Lubricating Hubs
  • Premium Brand Axles
  • Forward Self Adjusting Electric Brakes
  • Cambered Axles
  • Chambered Front w/ Formed 2" Stop Rail
  • Fabricated Front Stop Rail
  • 1/8" Diamond Plate Floor w/ (4) Recessed D-Rings
  • Integrated Dovetail
  • 5 x 20" Formed Diamond Plate Rear Slide-In Ramps
  • Removable Tear Drop Style Fenders
  • Grommet Mount Sealed Lighting
  • L.E.D. Lighting Package
  • Protected Wiring
  • Complete Break-A-Way System w/ Charger
  • Spare Tire Mount-Standard Equipped
  • Chrome Wheels w/ Chrome Caps & Lugnuts
  • Radial Tires

Optional Equipment

Category Description
BODY Front Rockshield (Aluminum Tread Brite)
BRAKES Electric Brakes on 2nd Axle
CARGO CONTROL A-Frame Tongue Box (Aluminum Tread Brite)
CARGO CONTROL A-Frame Tongue Box (Steel)
CARGO CONTROL Additional Recessed D-Rings in Floor
CARGO CONTROL Additional Stake Pockets
COUPLER 2-5/16" Forged Coupler
COUPLER 2-5/16" Stamped Coupler
TIRE/WHEEL Spare Tire (ST205/75R-15 LR-C, Chrome Mod)
TIRE/WHEEL Spare Tire Upgrade (ST225/75R-15 LR-D, Chrome Mod)
TIRE/WHEEL Tire Upgrade (ST225/75R-15 LR-C, Chrome Mod)
